Advantages

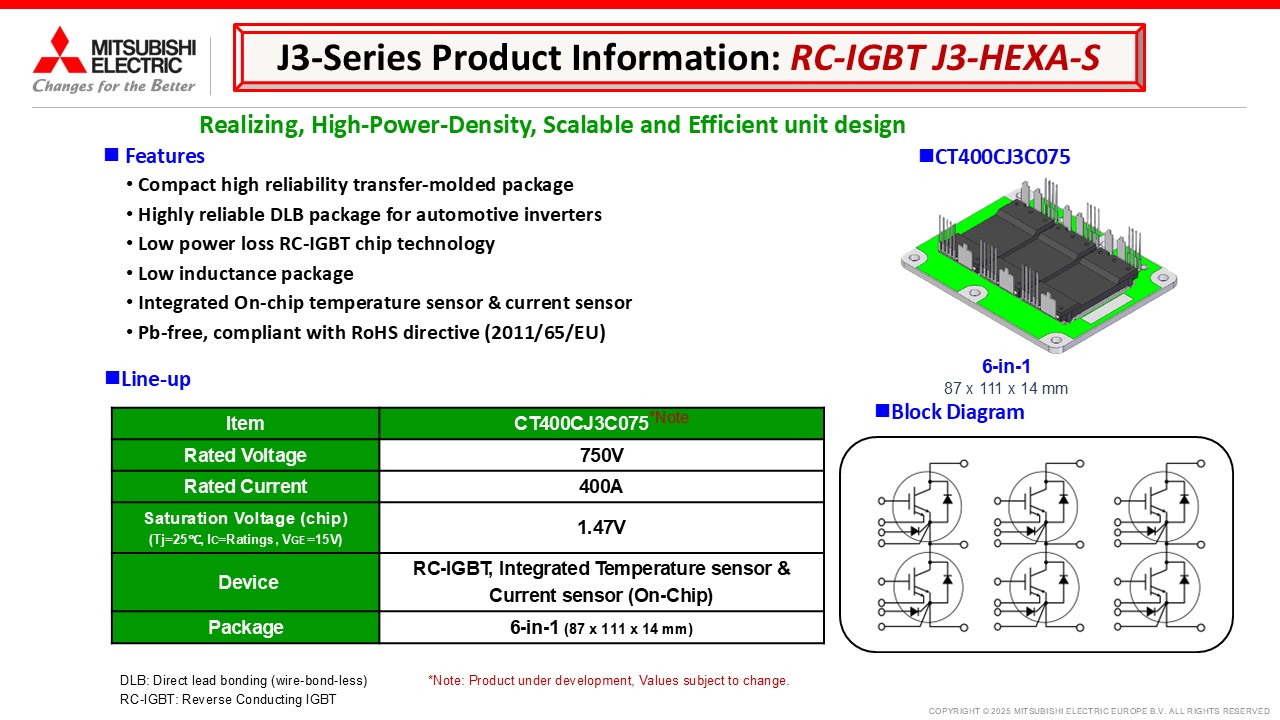

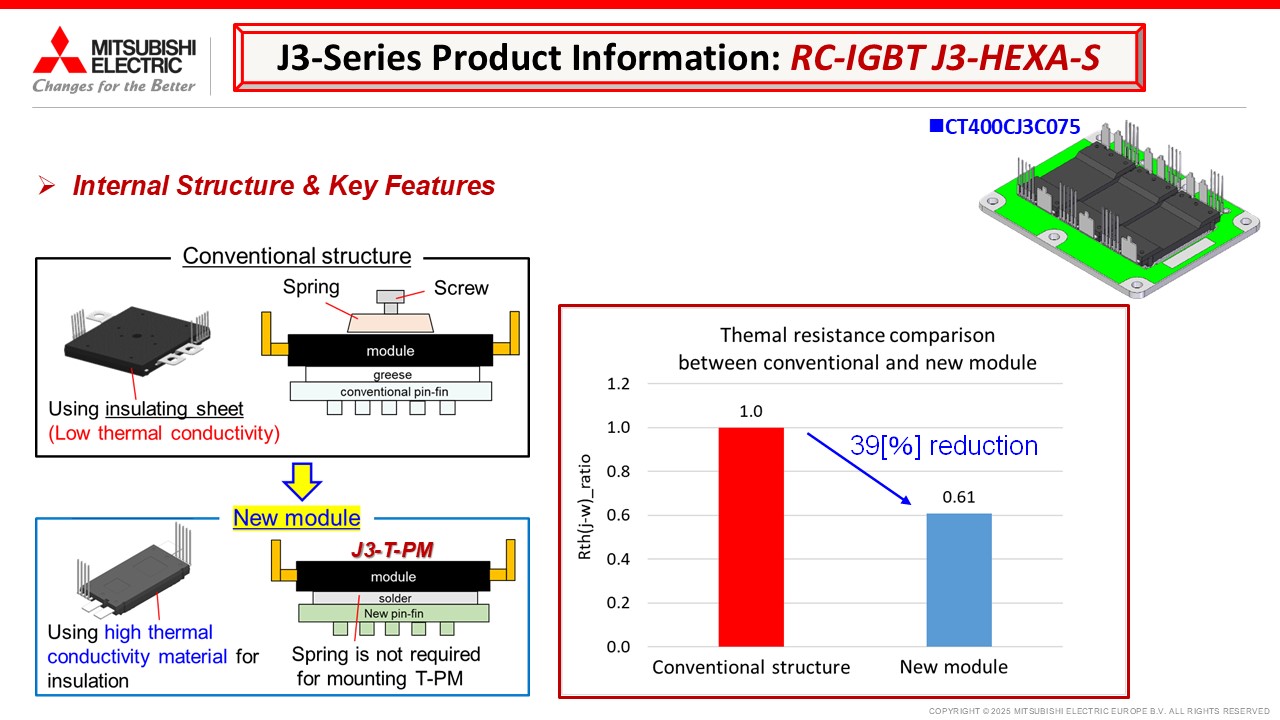

  • Extra-compact, direct-cooled 6-in-1 package with cooling fin

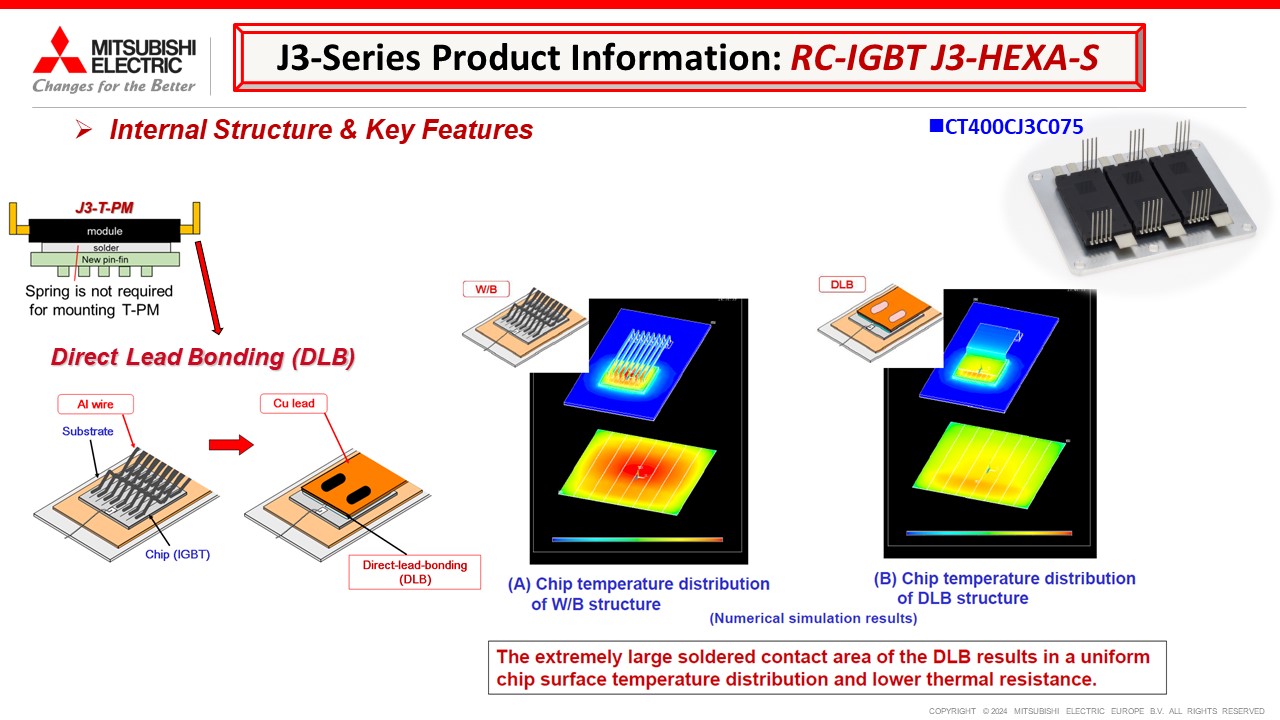

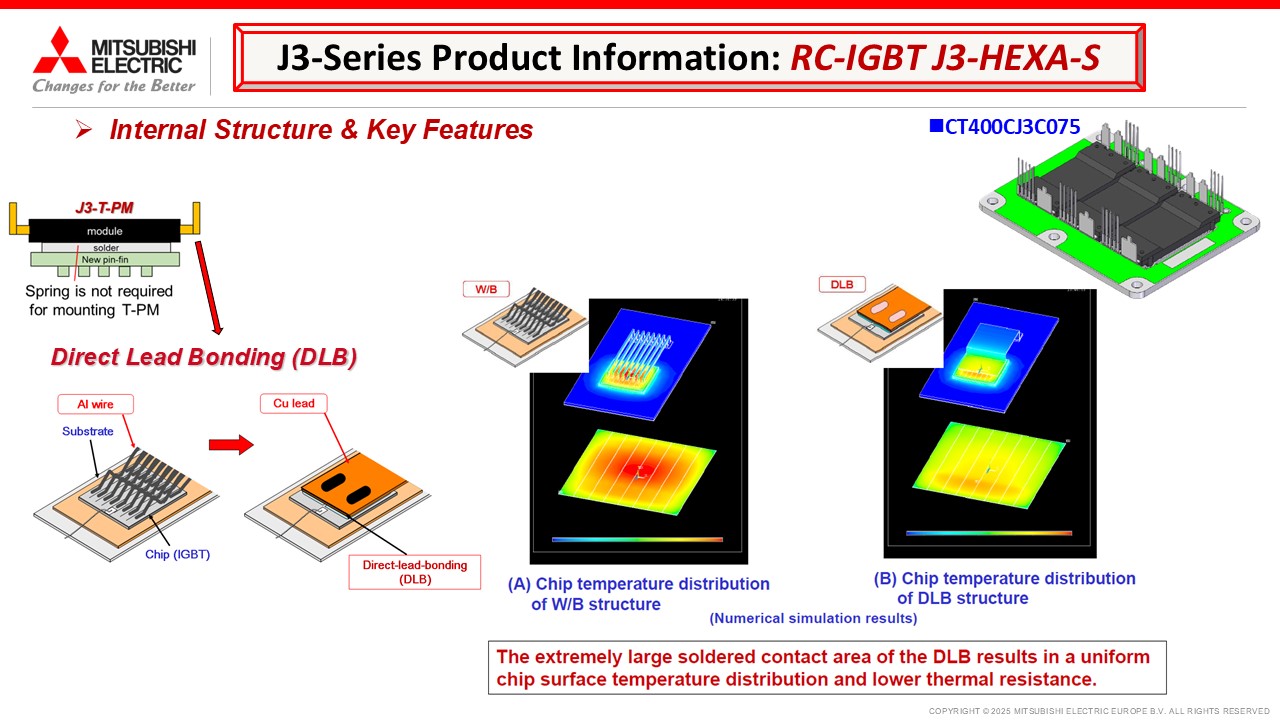

  • High reliability Direct Lead Bonding (DLB) wire bond less package for automotive inverters

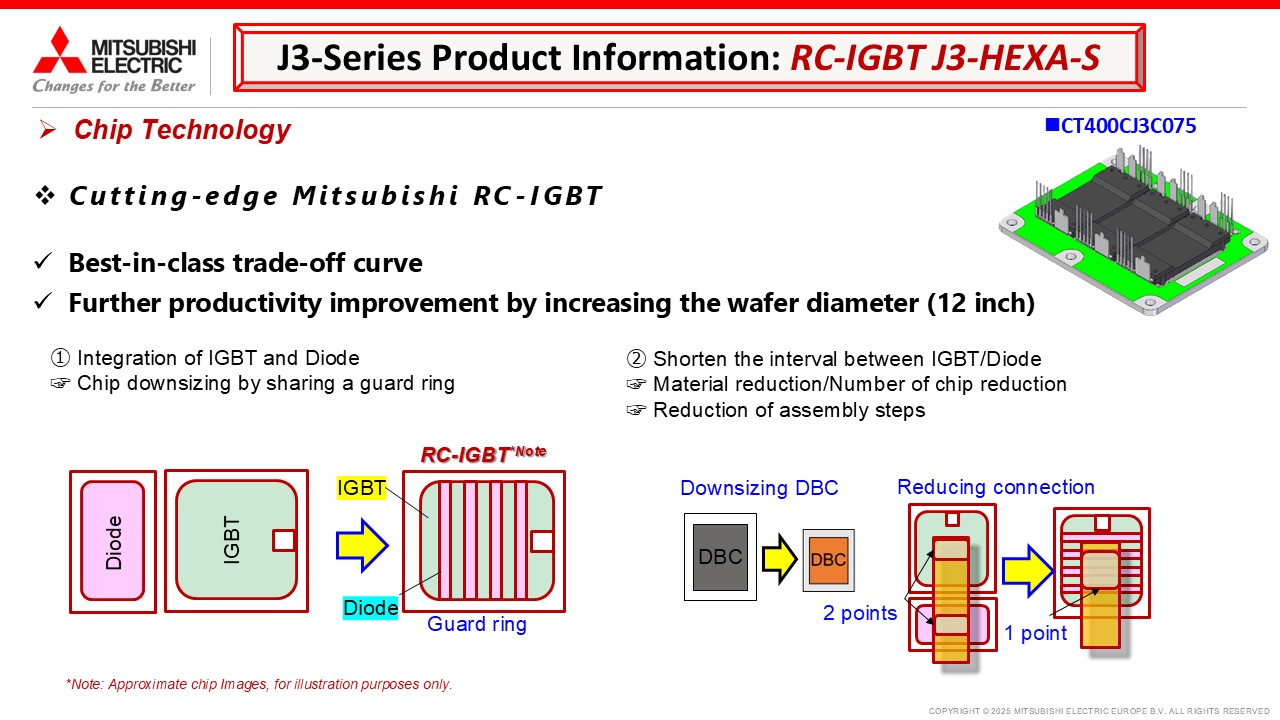

  • Low power loss RC-IGBT

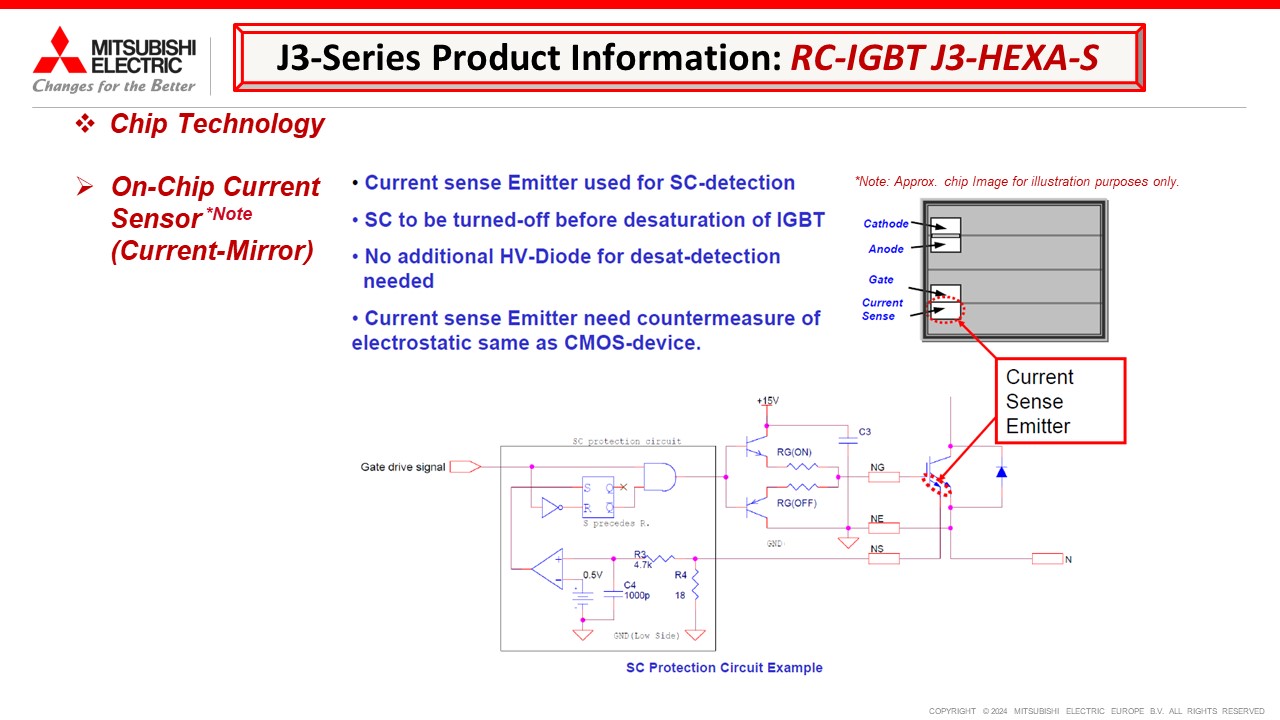

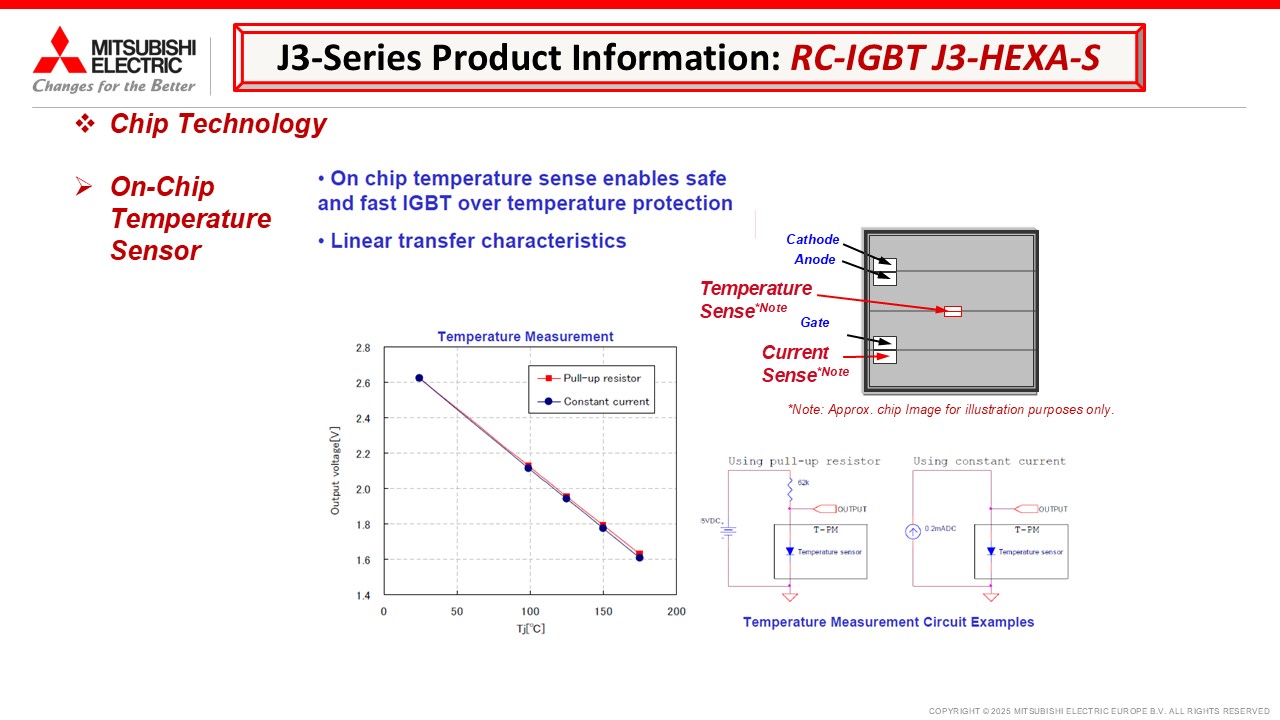

  • Integrated on-chip temperature & current sensors
  • Pb-free structure, compliant with RoHS directive (2011/65/EU)

Attributes

Ratings:

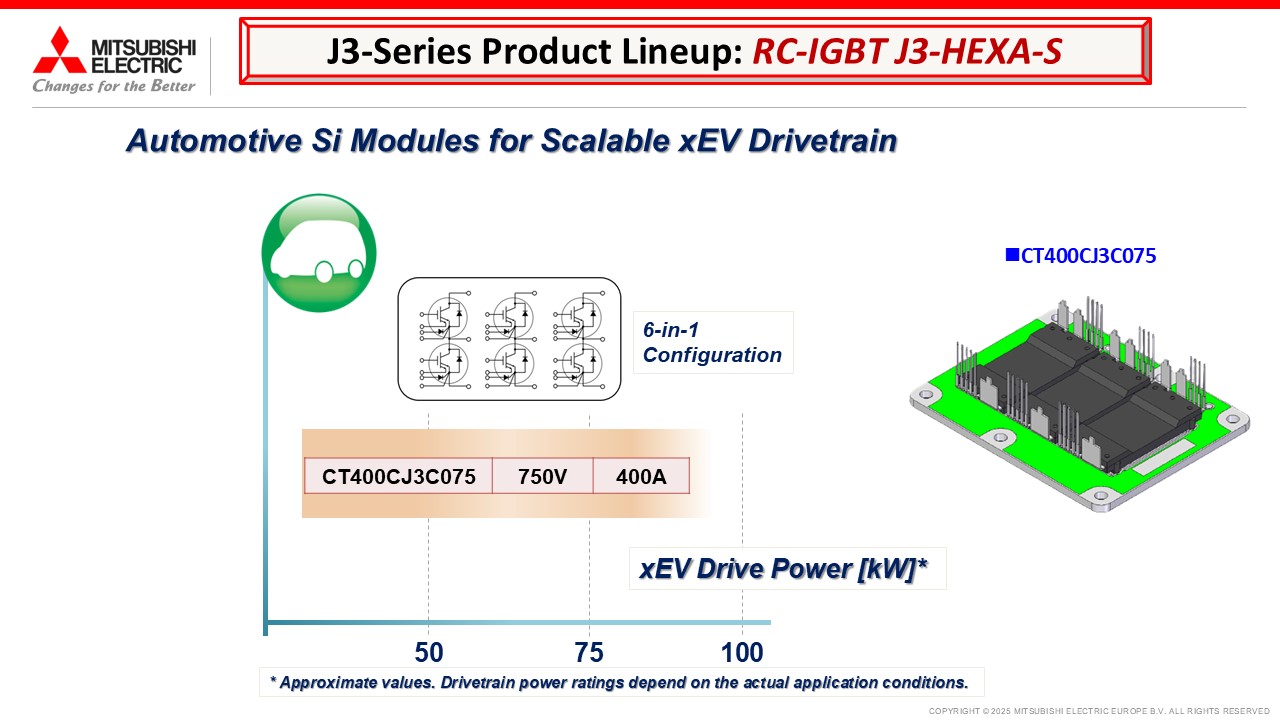

750V: 400A

Dimensions [mm]:

87 x 111 x 14
